Models:
Fits Case IH models 1680, 1682, 1688, 2188, 2377, 2388, 2577, 2588, 5088, 5130, 5140, 5150, 6088, 6130, 6140, 6150, 6160, 7088, 7130, 7140, 7150, 7160
Crops:
The 716-102 KX7 concave kit is intended for use in harvesting high-moisture corn. For the highest grain quality and least losses, Kondex recommends adjusting your concaves between crops.
Additional Crop Configurations

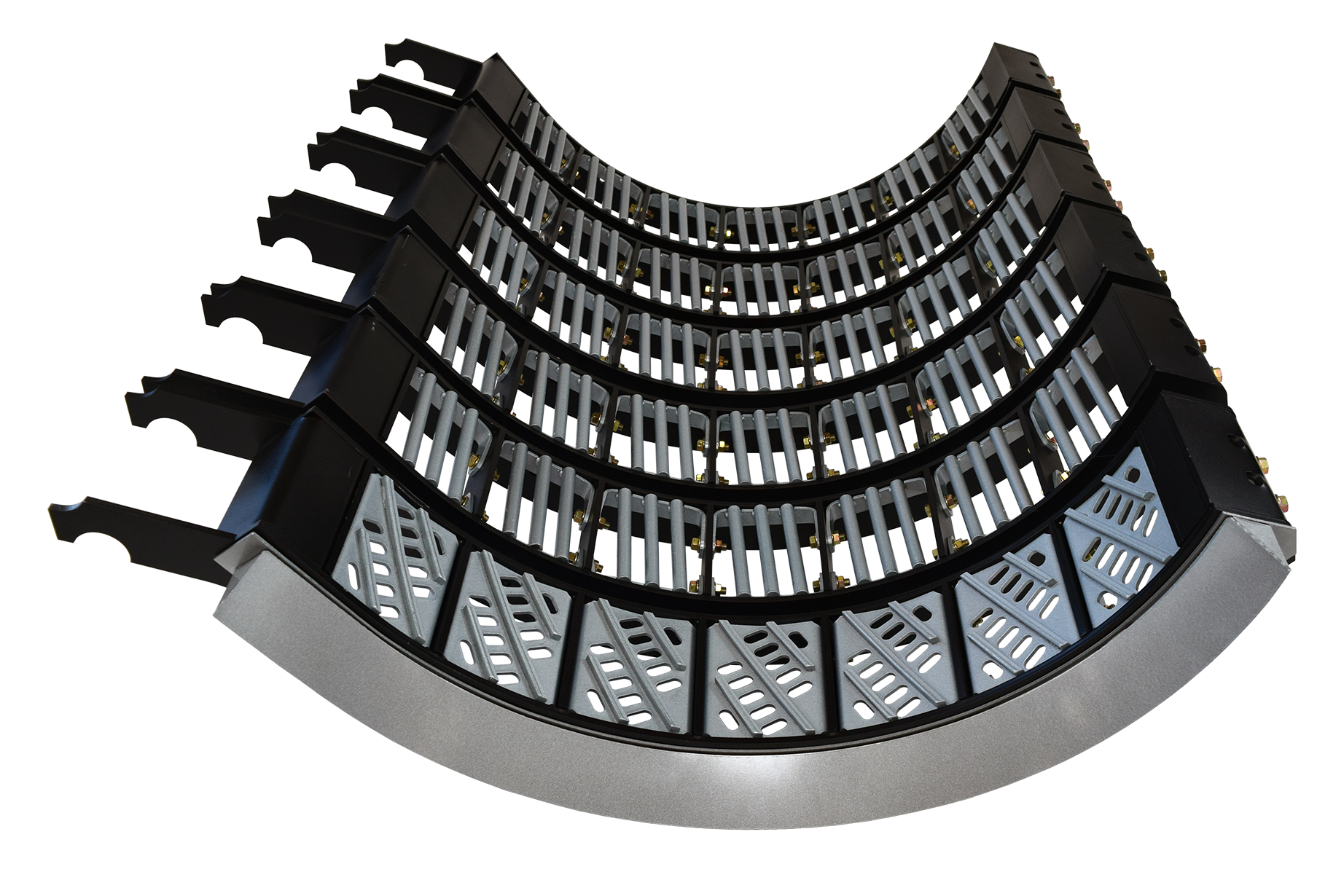

716-043: Corn, Peas, Popcorn, Soybeans
Includes | Description | Qty | Installation |
BA1-L05 | Front Ramp | 1 | - |
BA1-X05 | MaxThresh Concave Assembly | 1 | Row 1 |
BA1-R05 | MaxRound Concave Assembly | 5 | Rows 2-6 |
For the above configuration AND the 716-102 kit, click the below link to add an individual assembly:
Qty 1 - BA1-R05: KX7 MaxRound Concave for Case IH Mid-Range

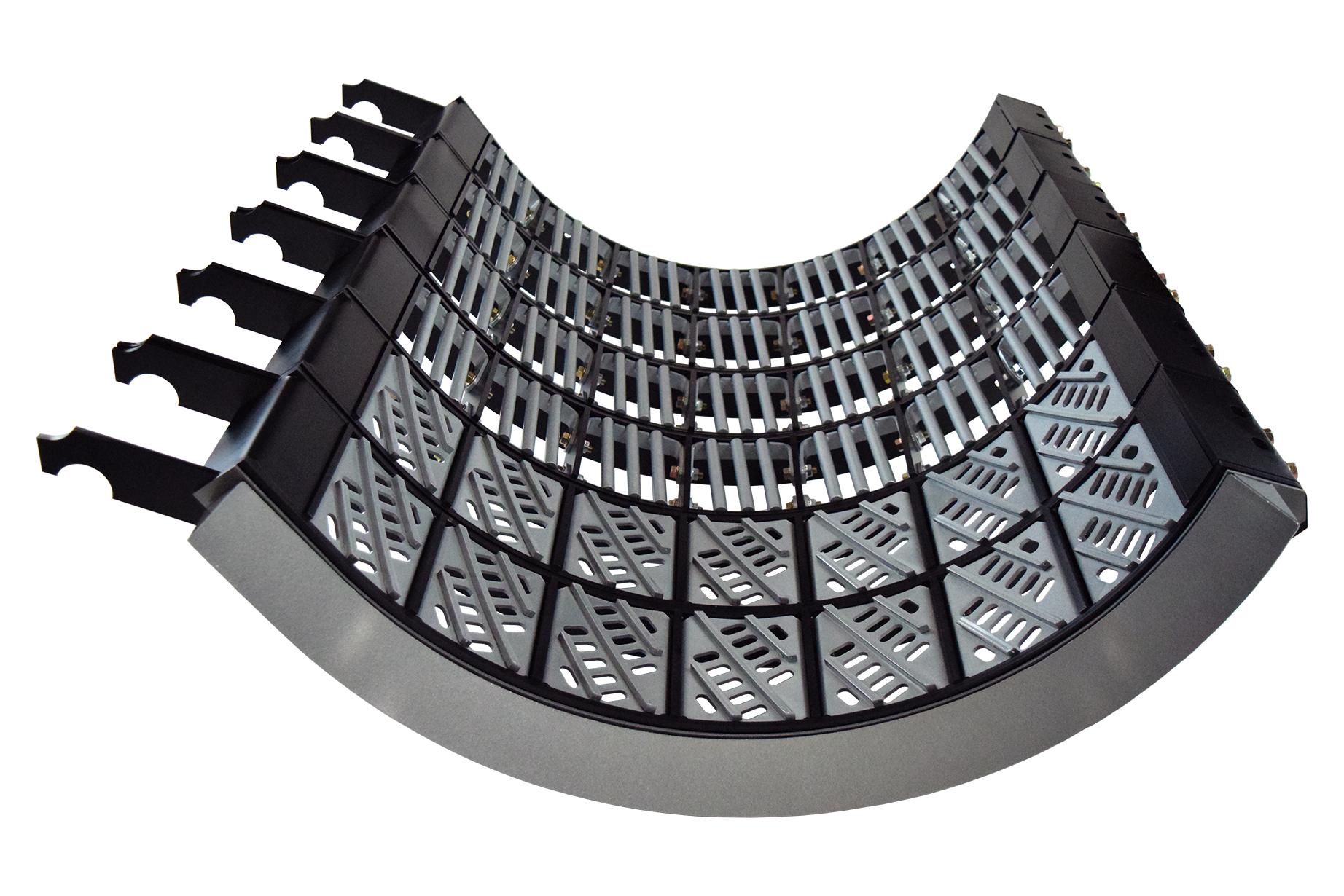

716-041: Canola, Flax, Lupins, Milo, Rice, Sunflower
Includes | Description | Qty | Installation |
BA1-L05 | Front Ramp | 1 | - |
BA1-X05 | MaxThresh Concave Assembly | 2 | Rows 1-2 |
BA1-R05 | MaxRound Concave Assembly | 4 | Rows 3-6 |
For the above configuration AND the 716-102 kit, no additional components are needed. Move the second MaxThresh assembly to position two instead of position three.

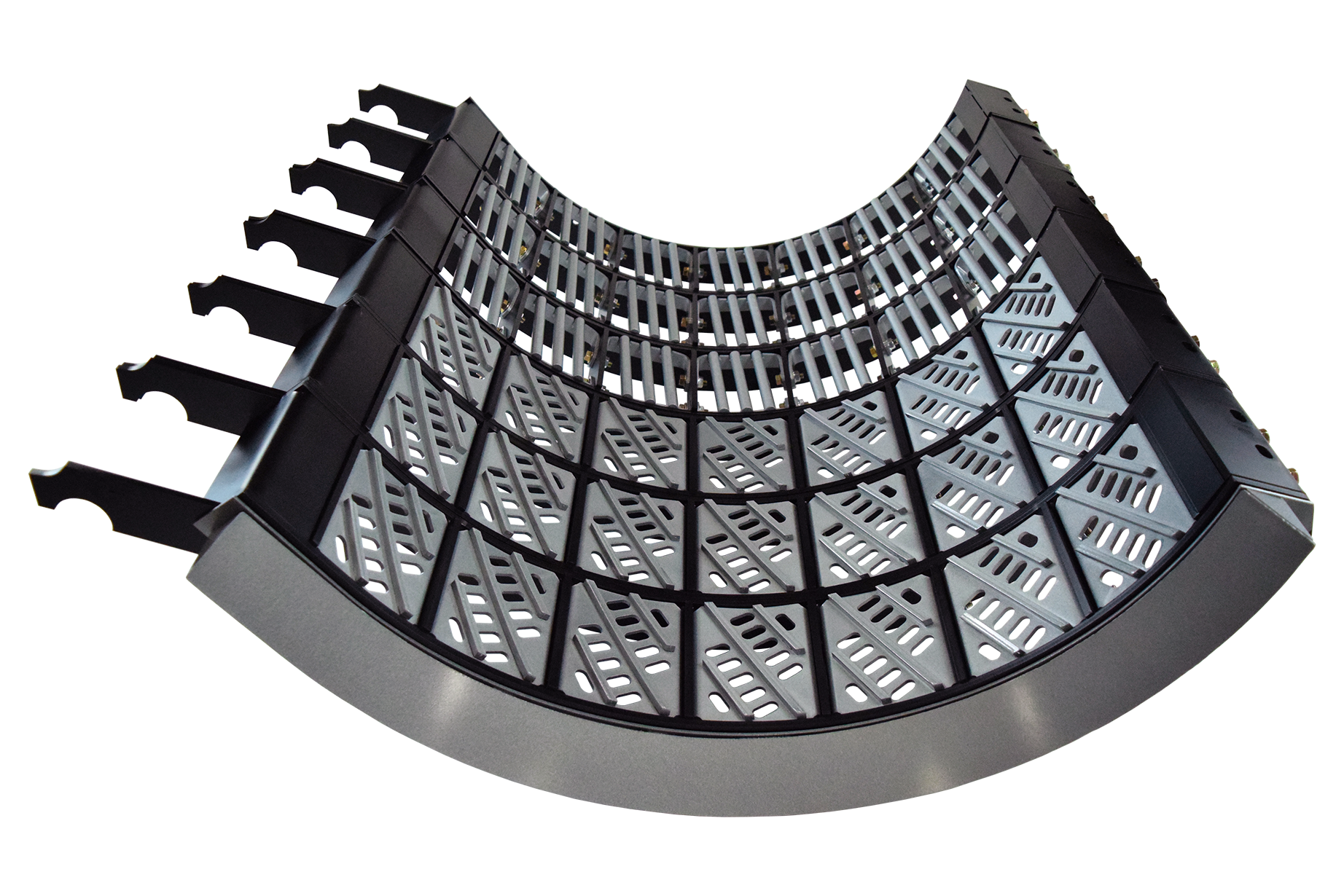

716-039: Barley, Oats, Rye, Wheat
Includes | Description | Qty | Installation |
BA1-L05 | Front Ramp | 1 | - |
BA1-X05 | MaxThresh Concave Assembly | 3 | Rows 1-3 |
BA1-R05 | MaxRound Concave Assembly | 3 | Rows 4-6 |
For the above configuration AND the 716-102 kit, click the below link to add an individual assembly:
Qty 1 - BA1-X05: KX7 MaxThresh Concave for Case IH Mid-Range

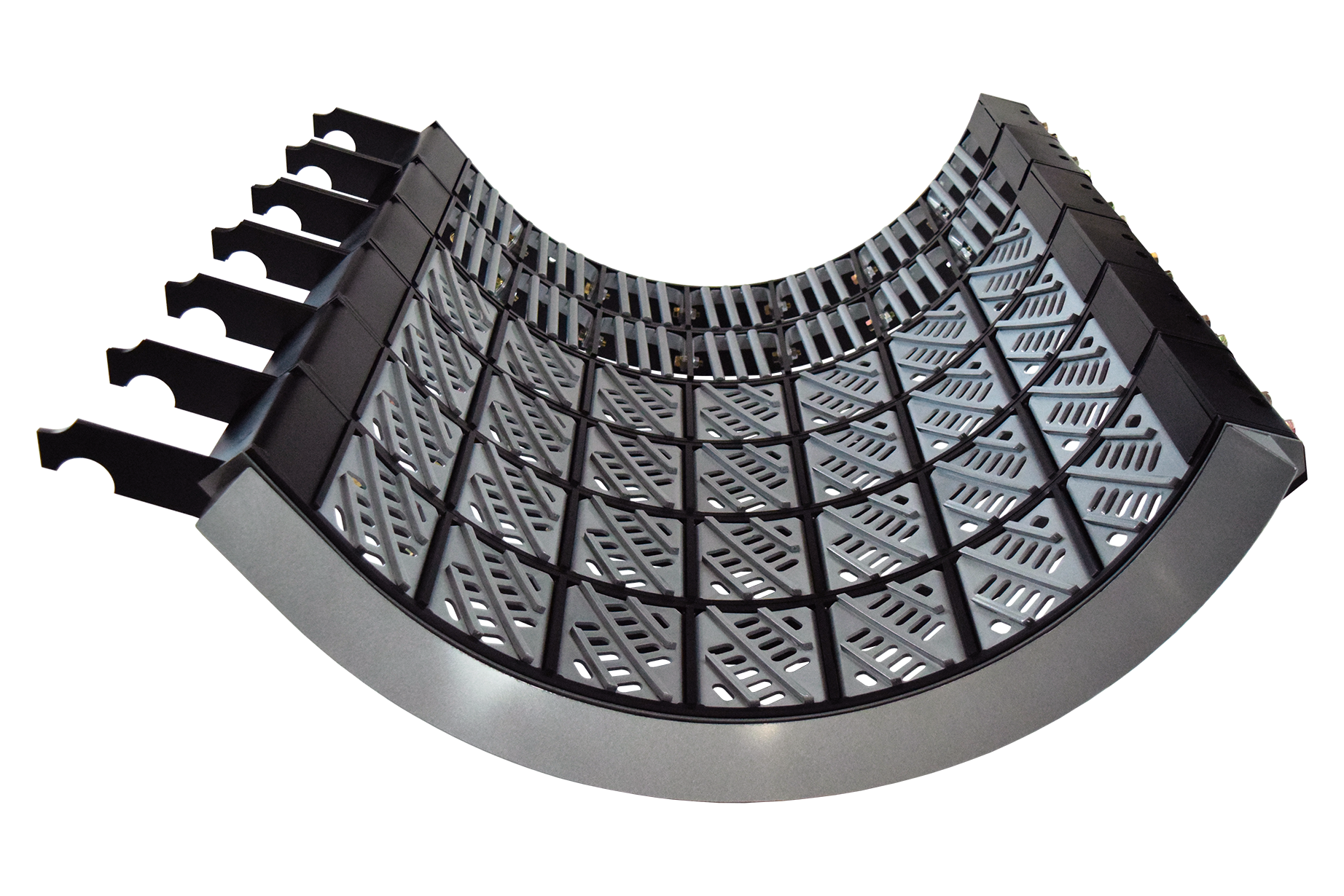

716-042: Tough-Threshing Wheat
Includes | Description | Qty | Installation |
BA1-L05 | Front Ramp | 1 | - |
BA1-X05 | MaxThresh Concave Assembly | 4 | Rows 1-4 |
BA1-R05 | MaxRound Concave Assembly | 2 | Rows 5-6 |
For the above configuration AND the 716-102 kit, click the below link to add these individual assemblies:
Qty 2 - BA1-X05: KX7 MaxThresh Concave for Case IH Mid-Range
